DeltaVision Measure
Brief description:

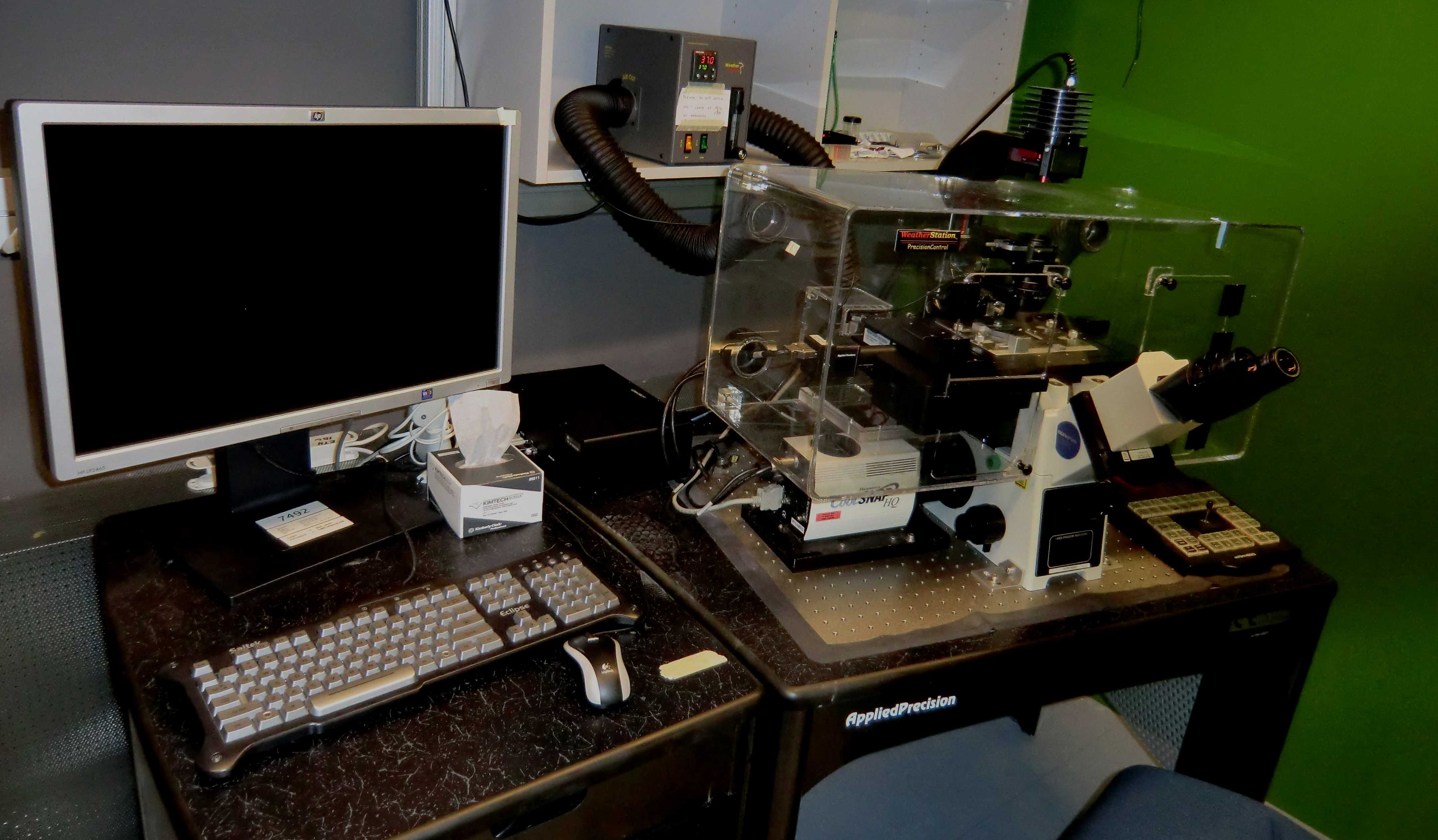

The DeltaVision personalDV multiplexed system is an epi-flurescence based system developed for deconvolution applications (operated by the Linux based DeltaVision Software SoftWorx).
Its speciality is the very precise motorized X-Y-Z stage which allows for automated multi-position experiments. Moreover the stage is designed to fit multi-well plates. The system is equipped with a temperature controlled incubator box and a multicolour solid state illumination light source as well as a fast motorized emission filter wheel which altogether allow fast multicolor 3D life cell imaging. The system is equipped with hardware autofocus.
Microscope:
- Olympus IX71 (inverse) equipped for phase contrast and DIC imaging
Ilumination:
- Insight SSI
Objectives:
- 20x 0.45NA Ph LUCPLFLN (long-distance dry)
- 40x 1.3NA DIC Oil UApo
- 60x 1.4NA DIC Oil PlanApo
- 100x 1.4NA DIC Oil PlanApo
Camera / detectors:
- pco.edge 5.5
Software:
- Softworx Version 4.1.0 (Applied Precision)
