TFS Magellan 400

Manufacturer:
TFS (Thermos Fisher Scientific)

Model name:
Magellan 400

Location:
HPM A52.1

Phone:
3 61 80

external page Direct booking link to PPMS

Instrument contact:

Dr. Karsten Kunze
Lecturer at the Department of Earth and Planetary Sciences
  • HPM D 46
  • +41 44 632 56 95
  • vCard Download

ScopeM
Otto-Stern-Weg 3
8093 Zürich
Switzerland

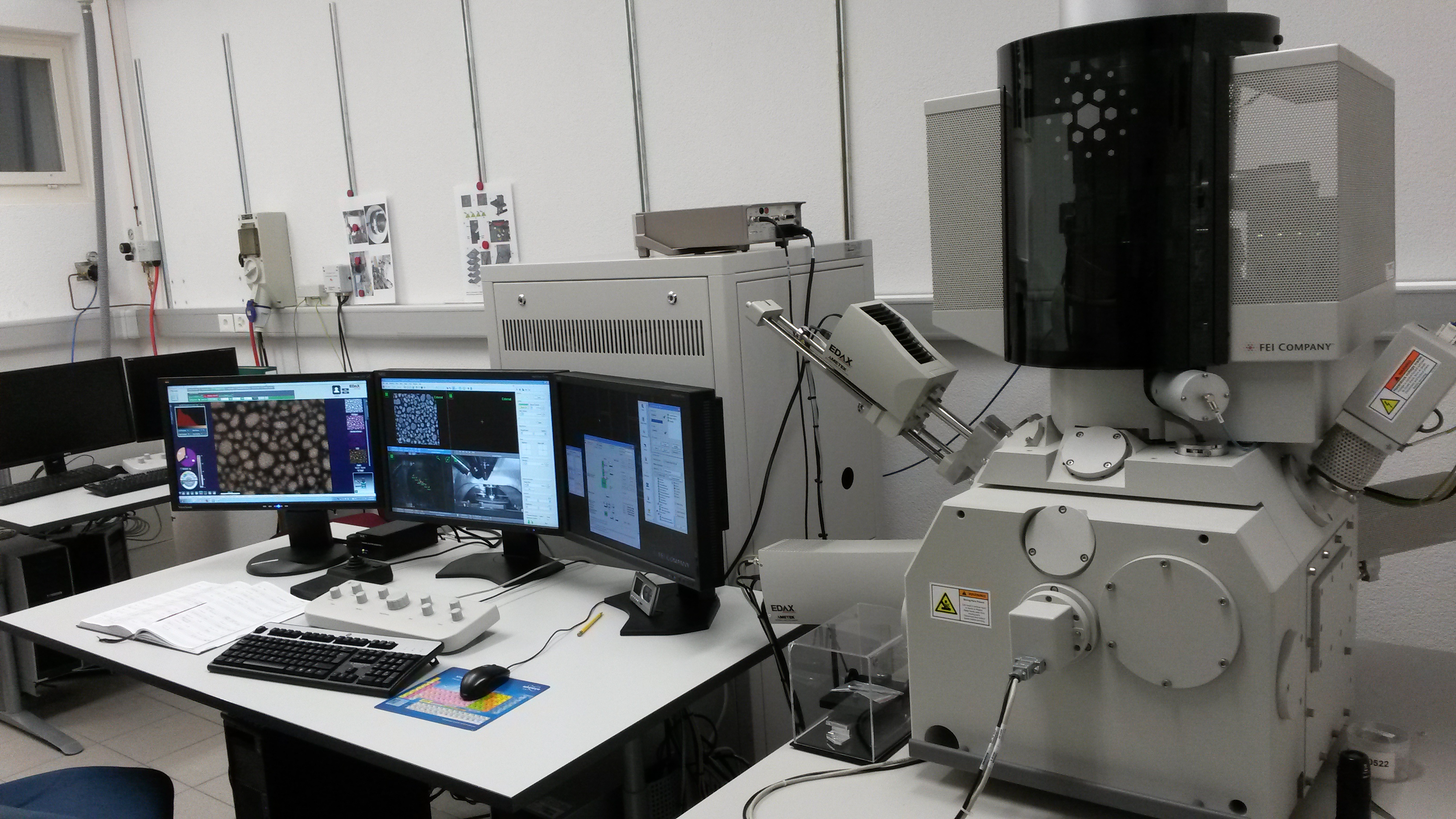

Enlarged view: Magellan

Brief description:

Dedicated extrem high resolution (XHR-) FEG-SEM

Software:

  • FEI Maps
  • Ametek-EDAX TEAM, OIM, Genesis

Camera / detectors:

  • Secondary electrons (SE): ETD, TLD
  • Backscattered electrons (BSE): CBS
  • Transmitted electrons (STEM): BF, DF, HAADF
  • Energy Dispersive X-ray Spectroscopy (EDX): EDAX Octane Super
  • Electron Backscatter Diffraction (EBSD): EDAX Hikari Super

Key features:

  • High Voltage: 0.05–30 kV
  • Emitter: Schottky Type FEG with UC mode
  • Lens modes: field-free, immersion, EDX
  • Beam decceleration
  • In-situ plasma cleaner
  • Cryo-can

Booking rules

The general ScopeM booking rules apply.

Exceptions for this system: Bookings exceeding 5 h should be coordinated with the instrument responsible
