TFS Quattro ESEM

Manufacturer:
TFS (Thermos Fisher Scientific)

Model name:
Quattro S SEM

Location:
HPT C8

Phone:
3 2595

external page Direct booking link to PPMS

Instrument contact:

Dr. Milivoj Plodinec
  • HPM D 48
  • +41 44 633 36 17
  • Email
  • vCard Download

ScopeM
Otto-Stern-Weg 3
8093 Zürich
Switzerland

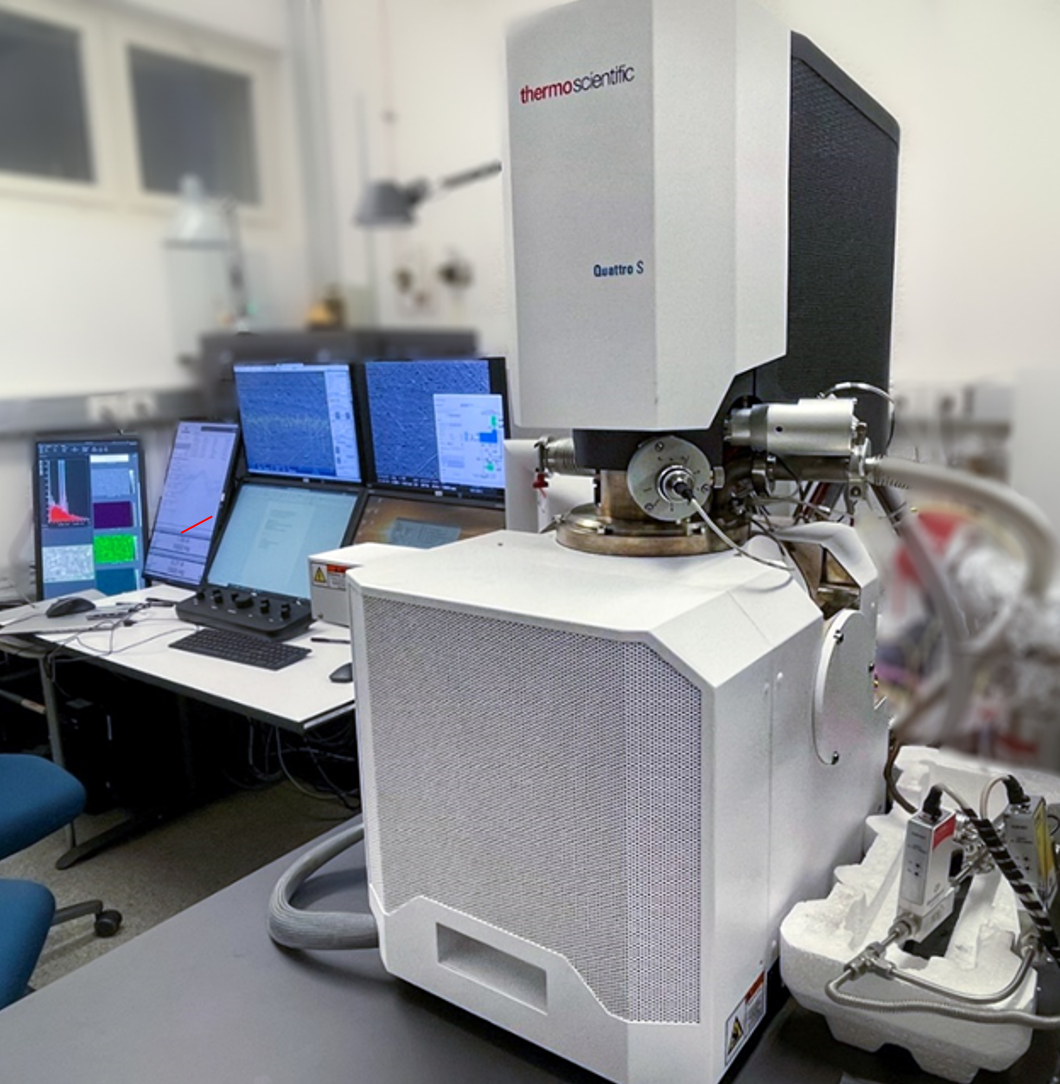

Enlarged view: Quattro

Brief description:

Multi-purpose high-resolution environmental-SEM.
The Quattro S is a dedicated environmental SEM (ESEM), that is a suitable platform for in-situ observation of complex structured materials. This customized ESEM allows studies across a large range of pressures while on-line mass-spectroscopic analysis of the gas phase promotes the structure-reactivity correlation under relevant conditions. The versatility of this instrument is also noted in the study of oxidation, alloying, corrosion, etching, crystal growth and catalysis.

High-vacuum:

  • Secondary electrons (SE): ETD
  • point electronic 4 quadrant back-scatter (BSE) detector, 3D BSE, 3D HT-BSE
  • point electronic electron beam absorbed current (EBAC) detector
  • Energy Dispersive X-ray Spectroscopy (EDX): EDAX Octane Elite 70 mm2

Environmental mode:

  • Secondary electron (SE): Low-vacuum detector (LVD), Gaseous SED (GSED)
  • point electronic 4 quadrant back-scatter (BSE) detector
  • point electronic electron beam absorbed current (EBAC) detector

Software:

  • TFS MAPS
  • TFS AutoScript 3
  • EDAX Apex
  • Custom heating controller
  • PV MassSpec
  • PV Turbo viewer
  • BRONHORST FLOWSUITE
  • point electronic DISS 5
  • MicroShape

Key features:

  • High Voltage: 0.2–30 kV,
  • Motorized stage (x,y,z), rotation 360°, tilt -15°/+90° In-situ Plasma cleaner
  • Emitter: Schottky Type FEG
  • Resolution: 1 nm @ 30 kV high-vacuum, 3 nm @ 30 kV low-vacuum

In-situ accessories:

  • Home-built laser heating stage (up 1200 °C), that allows heating and cooling up to 1000 °C/min
  • Home-built built gas-feeding system
  • Pfeiffer Prisma 250 Pro mass spectrometer

Vacuum modes:

  • High vacuum (3x10-5 Pa)
  • ESEM (<=4000 Pa), various gases: O2, H2, CxHy, Ar, N2, CO2
