Zeiss Polarization

Manufacturer:
Zeiss

Model name:
AxioImager.Z2 (upright)

Location:
HPM C16.1

Phone:
2 30 20

external page Direct booking link to PPMS

Instrument contact:

Dr. Tobias Schwarz

ScopeM
Otto-Stern-Weg 3
8093 Zürich
Switzerland

Brief description

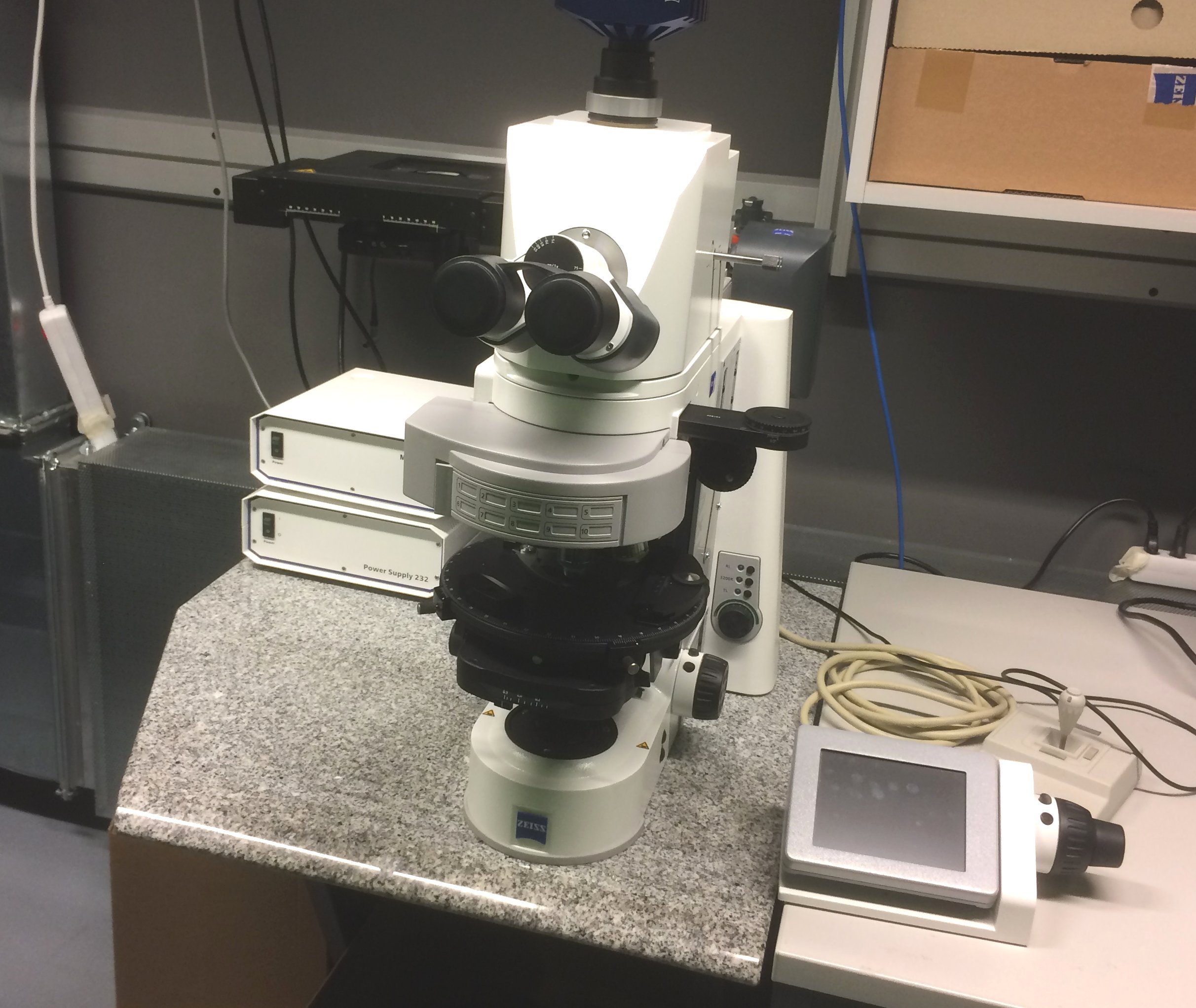

This microscope is dedicated to polarization microscopy in reflection and transmission mode as well as different contrast methods (Darkfield and cDIC) in reflection mode.

For polarisation microscopy the following equipment is available: rotary stage, two polarization filters (polarization orientation rotation 360°, each for excitation and detection light path once), lamda plate. The equipment allows both Orthoscopy and Conoscopy. Moreover the microscope can be equipped with a motorized stage and has both light source and fillter sets for fluorescence microscopy.

Technical details

Camera / detectors:

Zeiss AxioCam 506 color

Objectives:

5x 0.13NA EC Epiplan-NeoFluar HD DIC
20x 0.5NA EC Epiplan-NeoFluar HD DIC
50x 0.55NA EC Epiplan-NeoFluar HD DIC
100x 0.9NA EC Epiplan-NeoFluar HD DIC
20x 0.5NA EC Plan-NeoFluar
40x 0.75NA EC Plan-NeoFluar
40x 0.9NA EC Plan-NeoFluar Pol

Light sources:

Transmission mode: halogen lamp
reflection mode: halogen lamp
fluorescence: Colibri 7, excitation wavelengths of the LEDs
- UV: 385/30 nm
- V: 423/44 nm
- B: 469/38 nm
- C: 511/44 nm
- G: 555/30 nm
- Y: 590/27 nm
- R: 631/33 nm

Filter sets (fluorescence):

Software:

ZEN Blue (Zeiss)
